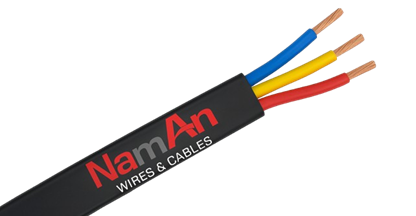

Submersible Flat Cables are designed with a unique flat profile, specially engineered for
continuous submerged operations in wells, tanks, and harsh marine environments. Built with
premium copper conductors and high-grade insulation, these cables provide reliable performance
even under challenging conditions.
With superior resistance to moisture, abrasion, grease, oil, and chemicals, and a wide operating
temperature range from -15°C to +70°C, these cables are an ideal choice for powering submersible
pumps and other underwater applications.
Available in multiple core variants and size range from 1.5 sq. mm to 35 sq. mm, our submersible
flat cables ensure long-lasting durability and uninterrupted power supply.
Flat Profile Design: Ensures easy installation in narrow spaces like borewells.
Moisture Resistant: Designed to work efficiently in submerged environments.
Durability: Resistant to abrasion, grease, oil, and most chemicals.
High Flexibility: Easy to wind, unwind, and handle during installation.
Temperature Tolerance: Performs in extreme conditions (-15°C to +70°C).
Multiple Variants: Available in 2 core, 3 core, and more core.
Wide Range: Sizes from 1.5 sq. mm up to 35 sq. mm.
COLOUR: BLACK
LENGTH: 100/500/1000 MTR
ISI Certified: Meets industry standards for safety and reliability.
Power supply for submersible pumps
Deep well and borewell installations
Water and wastewater treatment systems
Underwater monitoring and control equipments
Irrigation systems and agricultural motors
Flood control and drainage system
Long service life even in continuous submerged use
High strength insulation prevents leakage and short circuits
Cost-effective solution for water pumping and irrigation needs
Superior performance in rural, industrial, and urban applications
Trusted by electricians, farmers, and industries across India| Nominal Area of Conductor | Conductor Construction | Thickness of Insulation (Nominal) | Thickness of Outer Sheath (Nominal) | Approx Overall Diameter | Conductor Resistance (Max) per km @20°C | Max Current Carrying Capacity (2 Cables Single Phase) |
|---|---|---|---|---|---|---|
| (sq. mm) | (No./Dia.mm) | (mm) | (mm) | (mm) | (Ohms) | (Amps) |
| 1.5 | 30/0.25 | 0.6 | 0.9 | 10.3 × 4.7 | 13.3 | 14 |
| 2.5 | 50/0.25 | 0.7 | 1 | 12.4 × 5.5 | 7.98 | 15 |
| 4 | 56/0.3 | 0.8 | 1 | 14.5 × 6.3 | 4.95 | 26 |
| 6 | 84/0.3 | 0.8 | 1.1 | 16.4 × 7.0 | 3.3 | 31 |
| 10 | 140/0.3 | 1 | 1.4 | 21.3 × 9.0 | 1.91 | 42 |
| 16 | 226/0.3 | 1 | 1.4 | 24.9 × 10.3 | 1.21 | 57 |
| 25 | 354/0.3 | 1.2 | 2 | 31.3 × 13.2 | 0.78 | 72 |
| 35 | 495/0.3 | 1.2 | 2 | 34.9 × 14.4 | 0.554 | 90 |
