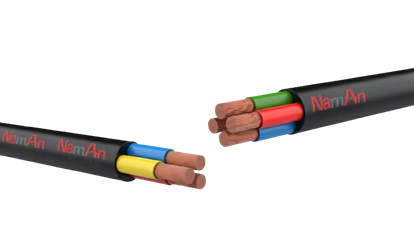

Our Multicore Flexible Round Cables are specially engineered to provide safe, organized, and space-efficient wiring for a variety of applications. Designed with multiple insulated copper conductors enclosed in a single robust sheath, these cables ensure superior flexibility, easy handling, and long-lasting performance.
Available in 2 core, 3 core, and 4 core variants, with sizes ranging from 0.5 sq. mm to 35 sq. mm, they are the perfect choice for everything from light domestic wiring to heavy industrial connections.
Multiple Variants: Available in 2 core, 3 core, and 4 core designs.
Wide Range: Sizes from 0.5 sq. mm up to 35 sq. mm for different requirements.
High Flexibility: Easy to bend and install, even in tight spaces.
Durable Sheath: Strong outer layer for protection against abrasion, heat, and
environmental factors.
Superior Conductivity: High-quality copper conductors for efficient current flow and
minimal loss.
ISI Certified: Tested and approved by the Bureau of Indian Standards.
Safe & Reliable: Multi-layer insulation reduces risks of overheating and electrical
faults.
Domestic and commercial electrical wiring
Control panels and machinery connections
Industrial automation systems
Pumps, motors, and agricultural equipment
Power and signal transmission in low-voltage systems
One cable, multiple conductors – simplifies wiring and reduces clutter
Longer service life with high resistance to wear and tear
Cost-effective solution for multiple wiring needs
Consistent performance in both indoor and outdoor conditions
Designed for safety, efficiency, and durability| Nominal Area of Conductor | Conductor Construction | Thickness of Insulation (Nominal) | Thickness of Outer Sheath (Nominal) | Approx Overall Diameter | Conductor Resistance (Max) per km @20°C | Max Current Carrying Capacity (2 Cables Single Phase) |
|---|---|---|---|---|---|---|
| (sq. mm) | (No./Dia.mm) | (mm) | (mm) | (mm) | (Ohms) | (Amps) |
| 4 × 0.5 | 16/0.2 | 0.6 | 0.9 | 7.3 | 39 | 3 |
| 4 × 0.75 | 24/0.2 | 0.6 | 0.9 | 7.7 | 26 | 6 |
| 4 × 1 | 32/0.2 | 0.6 | 0.9 | 8.1 | 19.5 | 10 |
| 4 × 1.5 | 30/0.25 | 0.6 | 1 | 9 | 13.3 | 14 |
| 4 × 2.5 | 50/0.25 | 0.7 | 1 | 10.5 | 7.98 | 18 |
| 4 × 4 | 56/0.3 | 0.8 | 1 | 12.2 | 4.95 | 24 |
| 4 × 6 | 84/0.3 | 0.8 | 1.2 | 13.9 | 3.3 | 30 |
| 4 × 10 | 80/0.4 | 1 | 1.4 | 17.9 | 1.91 | 39 |
| 4 × 16 | 126/0.4 | 1 | 1.4 | 20.8 | 1.21 | 55 |
| 4 × 25 | 196/0.4 | 1.2 | 1.6 | 25.4 | 0.78 | 60 |
| Nominal Area of Conductor | Conductor Construction | Thickness of Insulation (Nominal) | Thickness of Outer Sheath (Nominal) | Approx Overall Diameter | Conductor Resistance (Max) per km @20°C | Max Current Carrying Capacity (2 Cables Single Phase) |
|---|---|---|---|---|---|---|
| (sq. mm) | (No./Dia.mm) | (mm) | (mm) | (mm) | (Ohms) | (Amps) |
| 3 × 0.5 | 16/0.2 | 0.6 | 0.9 | 6.7 | 39 | 3 |
| 3 × 0.75 | 24/0.2 | 0.6 | 0.9 | 7.1 | 26 | 6 |
| 3 × 1 | 32/0.2 | 0.6 | 0.9 | 7.5 | 19.5 | 10 |
| 3 × 1.5 | 30/0.25 | 0.6 | 0.9 | 8 | 13.5 | 14 |
| 3 × 2.5 | 50/0.25 | 0.7 | 1 | 9.6 | 7.98 | 18 |
| 3 × 4 | 56/0.3 | 0.8 | 1 | 11.1 | 4.95 | 24 |
| 3 × 6 | 84/0.3 | 0.8 | 1.2 | 12.7 | 3.3 | 30 |
| 3 × 10 | 80/0.4 | 1 | 1.4 | 16.2 | 1.91 | 39 |
| 3 × 16 | 126/0.4 | 1 | 1.4 | 18.9 | 1.21 | 55 |
| 3 × 25 | 196/0.4 | 1.2 | 1.5 | 22.9 | 0.78 | 60 |
| 3 × 35 | 276/0.4 | 1.2 | 1.6 | 25.6 | 0.554 | 77 |
| Nominal Area of Conductor | Conductor Construction | Thickness of Insulation (Nominal) | Thickness of Outer Sheath (Nominal) | Approx Overall Diameter | Conductor Resistance (Max) per km @20°C | Max Current Carrying Capacity (2 Cables Single Phase) |
|---|---|---|---|---|---|---|
| (sq. mm) | (No./Dia.mm) | (mm) | (mm) | (mm) | (Ohms) | (Amps) |
| 3 × 0.5 | 16/0.2 | 0.6 | 0.9 | 6.7 | 39 | 3 |
| 3 × 0.75 | 24/0.2 | 0.6 | 0.9 | 7.1 | 26 | 6 |
| 3 × 1 | 32/0.2 | 0.6 | 0.9 | 7.5 | 19.5 | 10 |
| 3 × 1.5 | 30/0.25 | 0.6 | 0.9 | 8 | 13.5 | 14 |
| 3 × 2.5 | 50/0.25 | 0.7 | 1 | 9.6 | 7.98 | 18 |
| 3 × 4 | 56/0.3 | 0.8 | 1 | 11.1 | 4.95 | 24 |
| 3 × 6 | 84/0.3 | 0.8 | 1.2 | 12.7 | 3.3 | 30 |
| 3 × 10 | 80/0.4 | 1 | 1.4 | 16.2 | 1.91 | 39 |
| 3 × 16 | 126/0.4 | 1 | 1.4 | 18.9 | 1.21 | 55 |
| 3 × 25 | 196/0.4 | 1.2 | 1.5 | 22.9 | 0.78 | 60 |
| 3 × 35 | 276/0.4 | 1.2 | 1.6 | 25.6 | 0.554 | 77 |
